THÔNG SỐ KỸ THUẬT:

Giải đo: đến 400MΩ
Điện áp thử: 250V, 500V, 1000V
Đo điện trở  500ohm & 3ohm
Màn hình hiển thị: 31/2 Digit LCD
Đo điện áp: đến 600Vac

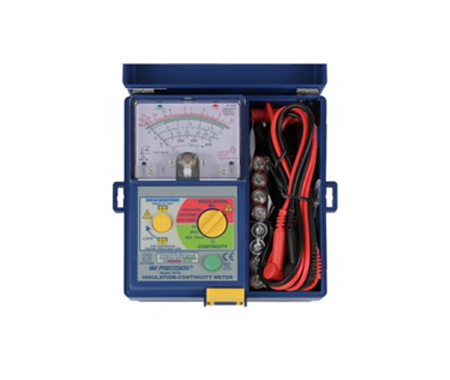

The model 307A insulation tester is intended primarily for periodic testing of industrial motors, transformers, electrical wiring, and cable insulation for signs of deterioration. Low readings may indicate impending failure allowing for permit replacement of suspect component during routine maintenance rather than risking component failure. It is also useful for safety testing of TV sets and appliances to assure no hazardous leakage current. The voltage and resistance ratings for insulation testing are often specified for the products to be tested.

Test insulation to 400Mohms
Selectable 250V, 500V, or 1000V insulation test
Low ohm resistance test ranges 500ohm & 3ohm
200mA Short circuit test
Extra rugged integral carrying case
Locking switch for extended testing
Live circuit indicator warns of safety hazard
Volt meter to 600Vac
Battery test feature
Overload protection
IEC 1010-1 Cat III 600V / CE
